JUKI 441
1. Machine Name:Juki Heavy Duty Machine
2. Brand: JUKI
3. Model: TSC-441U
4. MOQ:10Sets
5. Max.Sewing Speed: 800sti/min
6. Max. Stitch Length: 11mm (normal/reverse feed)
7. Needle Bar Stroke: 56mm
8. Lift Of The Presser Foot: By pedal : 20mm/By hand : 12mm
9. Free Space For Sewing: 420mm
10. Cylinder Bed Diameter: φ81mm

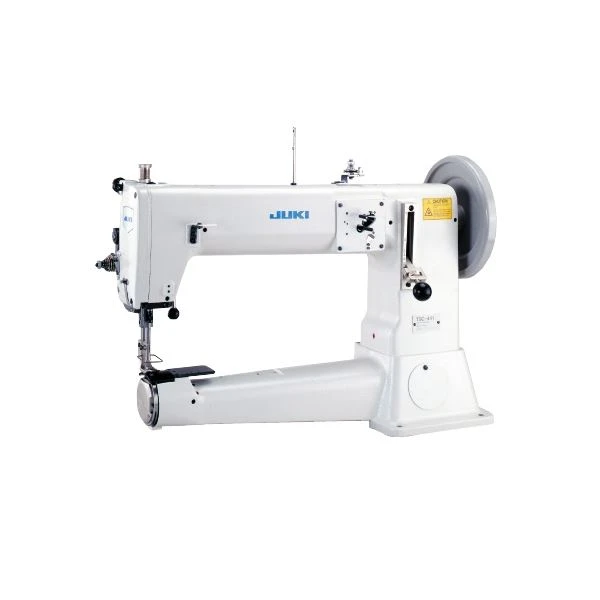

JUKI TSC-441U heavy duty machine:
JUKI TSC-441U heavy duty machine
JUKI TSC-441U heavy duty machine parameters:
|
TSH-411U |
TSN-421U |
TSU-471U |
TSC-441U |
|
|
|
||||
|
800sti/min |
||||
|
11mm (normal/reverse feed) |
||||
|
56mm |
||||
|
By pedal : 20mm/By hand : 12mm |
||||
|
- |
4-8mm | |||
|
Thread take-up |
Cam-type |
|||
|
Large shuttle-hook |
||||
|
794Nm130-Nm280 (standard Nm230) |
||||
|
#{{0}}#0 (Japanese yarn count) |
||||
|
420mm |
||||
|
φ81mm |
||||
|
56kg |
||||
JUKI TNU-441U heavy duty sewing machine features:
1. Four different feeding methods are available
TSH-411U (Bottom feed)
The TSH-411U can be modified to sew sharp curves by replacing the presser foot with a roller presser.
TSN-421U (Needle feed)
With its bottom feed and feed-dog feed, the machine sews articles entirely free from uneven material feed.
TSU-471U (Top & bottom feed)
The top feed amount is adjustable within the range of ±30% of the bottom feed.
Use: Gloves, tents, bags, bag handles, shirring, tape-attachment with a binder installed on the machine, etc.
TSC-441U (Unison feed)
A top & bottom feed mechanism has been added to the machine's needle feed system.This ensures a higher feed efficiency and the production of higher-quality seams without uneven material feed.
2. Frequency of bobbin thread replacement is reduced
JUKI TSC-441U heavy duty sewing machine comes with a large shuttle-hook. This type of shuttle-hook helps to reduce the frequency of bobbin thread replacement and is best suited for the sewing of extra-heavy-weight materials sewn with lower-count threads.
3. Higher lift of the presser foot
The lifting range of the presser foot is as high as 20mm for smooth placement/removal of extra-heavy-weight materials.
4. The bobbin winder is built into the front portion of the machine
5. Wider space under the machine arm
JUKI TSC-441U heavy duty sewing machine has a wider free space under the machine arm to allow the operator to easily place and remove a large sewing products. In addition, the machine has outstanding capabilities in the sewing of sharp curves.
